DMX RGB LED Flood Light 50W 100W 200W 300W 500W 700W

  • dmx rgb led flood light 100w 200w 300w 500w 700w
  • dmx rgb led flood light 100w 200w 300w
  • dmx rgb led flood light 10w 20w 30w 50w
  • dmx rgb led lawn light 12w 18w 24w 36w
  • remote control rgb led flood light 10w 20w 30w 50w

Brief Description

✪ Optional powers: 10W / 20W / 30W / 50W / 100W / 200W / 300W/ 500W / 700W.
✪ Support RGB or RGBW solution.
✪ Multiple models are available.
✪ Optional DMX512 function.
✪ Wireless controlled function is customizable.
✪ Optional beam angles: 5°/10°/15°/30°/45°/60°/120°.
✪ Outdoor IP66 / IP65 waterproof and IK08 grade.
✪ 3 / 5 Years warranty.

SKU: ZL-FL-JD

We are an expert on manufacturing DMX flood lights, RGB flood lights, RGBW flood lights and remote control flood lights. Our factory is located in Guangdong China. We manufacture a great deal of different models with wattages from 10W to 700W. Let's take a look at them.

ZL-FL-JD Series

High Power DMX RGB LED Flood Light

> High power: 100W to 700W.
> Use LED chips of CREE brand.
> Use LED driver of Mean Well brand, 5 years warranty.
> Optional DMX function and wireless function.
> Suitable to use to illuminate very tall buildings, trees or other applications with very long distance. Recommanded illuminating distance: 30 meter to 200 meters.

Parameter Table

Item No. Power LED
Brand		 CCT Materials Beam
Angle		 IP Rating Dimension DMX512
Function		 Warranty
ZL-FL-JD100 100W CREE RGB/RGBW AL.+Lens+
Glass		 5°~120° IP66 Φ240*H280mm Optional 5 Years
ZL-FL-JD200 200W CREE RGB/RGBW AL.+Lens+
Glass		 5°~120° IP66 Φ380*H230mm Optional 5 Years
ZL-FL-JD300 300W CREE RGB/RGBW AL.+Lens+
Glass		 5°~120° IP66 Φ380*H345mm Optional 5 Years
ZL-FL-JD500 500W CREE RGB/RGBW AL.+Lens+
Glass		 5°~120° IP66 Φ480*H391mm Optional 5 Years
ZL-FL-JD700 700W CREE RGB/RGBW AL.+Lens+
Glass		 5°~120° IP66 Φ472*H496mm Optional 5 Years

Applications

rgb led flood light for high building
dmx rgb flood light for high building

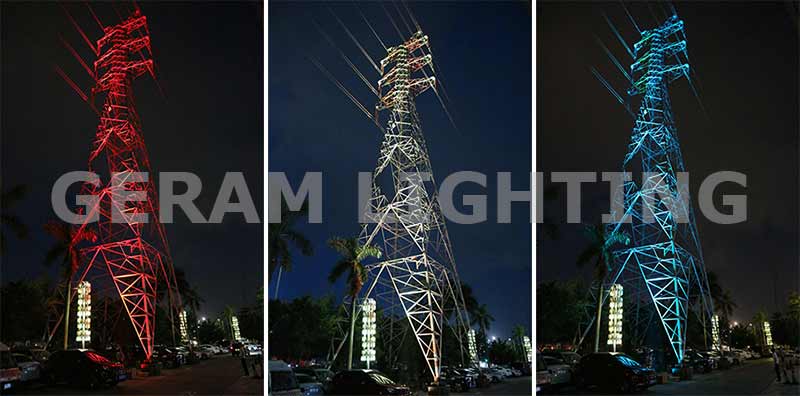

dmx rgb led flood light for tower

ZL-FL-J Series

DMX RGB Flood Light 100W 200W 300W

> High power: 100W to 300W.
> Use CREE brand LED chips and Mean Well brand driver.
> Optional DMX function and wireless function.
> Rectangular shape. Very suitable to use as wall washer for 10 meters to 30 meters tall buildings or trees.

Parameter Table

Item No. Power LED
Brand		 CCT Materials Beam
Angle		 IP Rating Dimension DMX512
Function		 Warranty
ZL-FL-J100 100W CREE RGB/RGBW AL.+Lens+
Glass		 5°~120° IP66 330*305*160mm Optional 5 Years
ZL-FL-J200 200W CREE RGB/RGBW AL.+Lens+
Glass		 5°~120° IP66 430*305*160mm Optional 5 Years
ZL-FL-J300 300W CREE RGB/RGBW AL.+Lens+
Glass		 5°~120° IP66 600*305*160mm Optional 5 Years

Applications

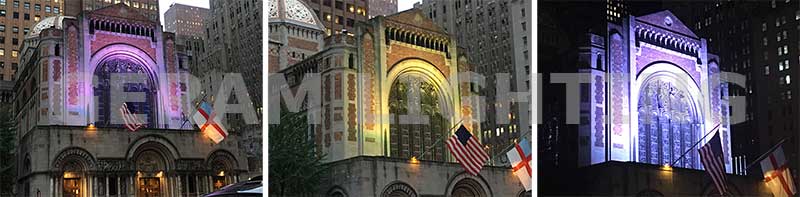

dmx rgb flood light for church

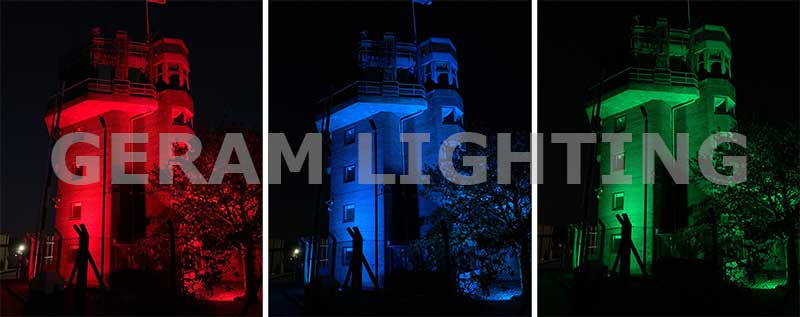

rgb led flood light for holiday house
rgb led flood light for holiday house

ZL-FL-JB Series

50W DMX RGB LED Flood Light

> Power: 10W to 50W.
> Support multiple beam angles: 5°/10°/15°/30°/45°/60°/120°.
> Optional DMX function and remote control function.
> Small power. Suitable to use to illuminate 5 meters to 15 meters buildings or trees.

Parameter Table

Item No. Power LED
Brand		 CCT Materials Beam
Angle		 IP Rating Dimension DMX512
Function		 Warranty
ZL-FL-JB010 10W EPILEDS RGB/RGBW AL.+Lens+
Glass		 5°~120° IP65 115*85*85mm Optional 3 Years
ZL-FL-JB020 20W EPILEDS RGB/RGBW AL.+Lens+
Glass		 5°~120° IP65 180*140*120mm Optional 3 Years
ZL-FL-JB030 30W EPILEDS RGB/RGBW AL.+Lens+
Glass		 5°~120° IP65 225*185*170mm Optional 3 Years
ZL-FL-JB050 50W EPILEDS RGB/RGBW AL.+Lens+
Glass		 5°~120° IP65 285*230*180mm Optional 3 Years

Applications

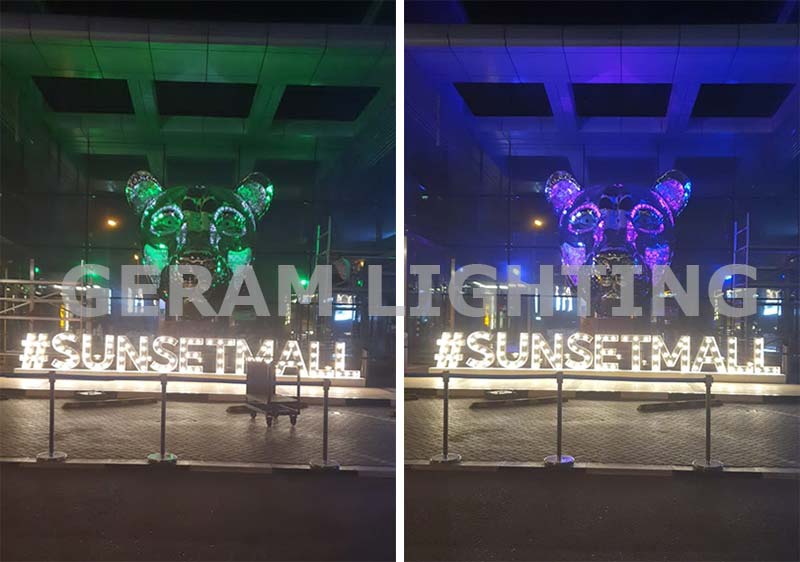

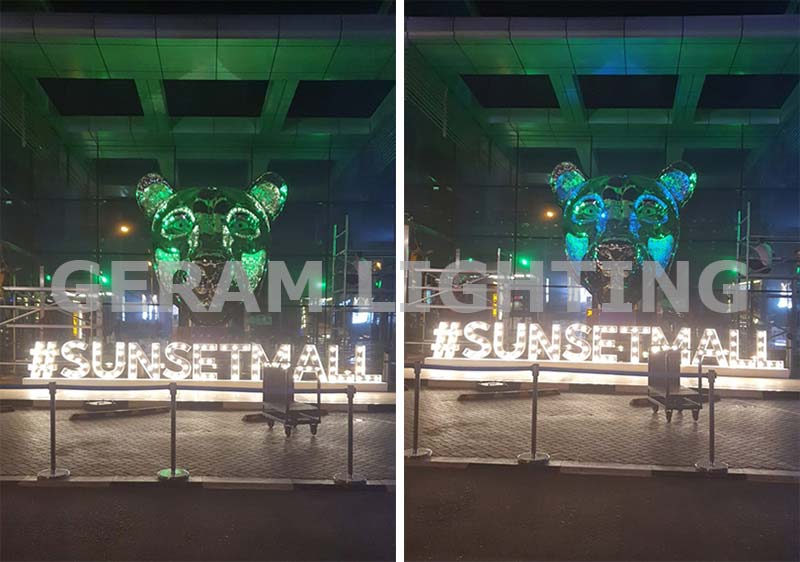

50W RGB Flood Light Application
50W RGB Flood Light Application

ZL-FL-JC Series

RGB LED Flood Light With Remote Control

> Power: 10W to 50W.
> Wide beam angle: larger than 120°.
> With memory function. The setting will not change after restart.
> With remote control(16 color tones). Easy to use. Suitable to use for short buildings or trees.

Parameter Table

Item No. Power LED
Brand		 CCT Materials Beam
Angle		 IP Rating Dimension Remote
Control		 Warranty
ZL-FL-JC010 10W EPILEDS RGB Aluminum+
Glass		 >120° IP65 115*85*85mm Support 3 Years
ZL-FL-JC020 20W EPILEDS RGB Aluminum+
Glass		 >120° IP65 180*140*120mm Support 3 Years
ZL-FL-JC030 30W EPILEDS RGB Aluminum+
Glass		 >120° IP65 225*185*170mm Support 3 Years
ZL-FL-JC050 50W EPILEDS RGB Aluminum+
Glass		 >120° IP65 285*230*180mm Support 3 Years

Applications

rgb led flood light with wireless controller

ZL-FL-JA Series

DMX RGB LED Lawn Light

> Power: 12W to 36W.
> Optional base type or plug type.
> Optional DMX512 function or with internal program.
> Mostly used as LED lawn light in landscape applications.

Parameter Table

Item No. Power LED
Brand		 CCT Materials Beam
Angle		 IP Rating Dimension DMX512
Function		 Warranty
ZL-FL-JA012 12W EPILEDS RGB/RGBW AL.+Lens+
Glass		 5°~120° IP65 Φ155*H195mm Optional 3 Years
ZL-FL-JA024 24W EPILEDS RGB/RGBW AL.+Lens+
Glass		 5°~120° IP65 Φ182*H215mm Optional 3 Years
ZL-FL-JA036 36W EPILEDS RGB/RGBW AL.+Lens+
Glass		 5°~120° IP65 Φ200*H255mm Optional 3 Years

Applications

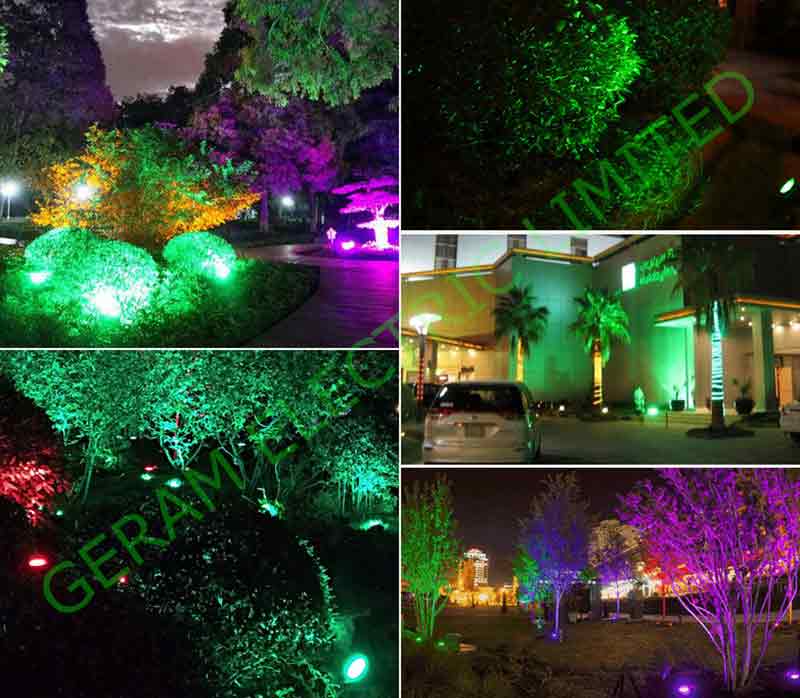

dmx rgbw led spotlight 24 watt 36 watt

Color Changing Effects

Our RGB LED flood light is smart and can generate multiple color changing effects. Such as Flash, Strobe, Jumping, Fade, Smooth, etc. If working with a DMX controller, it can generate more complicated effects such as trotting horse lamp, timer setting for switch, etc.

DMX512 Function

DMX is short for "Digital Multiplex", we can simplely understand it as a digital protocol. Nowadays, normally DMX is refered to DMX512(support maximum 512 channels, one color each channel), you can learn more information on wikipedia or read our post about DMX/DMX512 lighting. Our light can show many different color effects by working with DMX512, we need to use an external DMX controller and add hardware parts to the lights. The program is held in the controller and the signal will be sent to the lights to generate different colors or effects. Our RGB flood light supports universal DMX512 controller as long as it supports standard DMX512 protocol. You can buy the controller from us or in your local market.

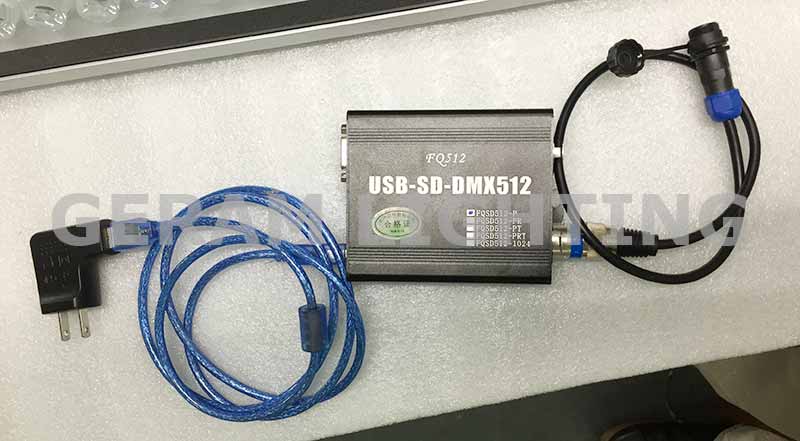

dmx512 controller

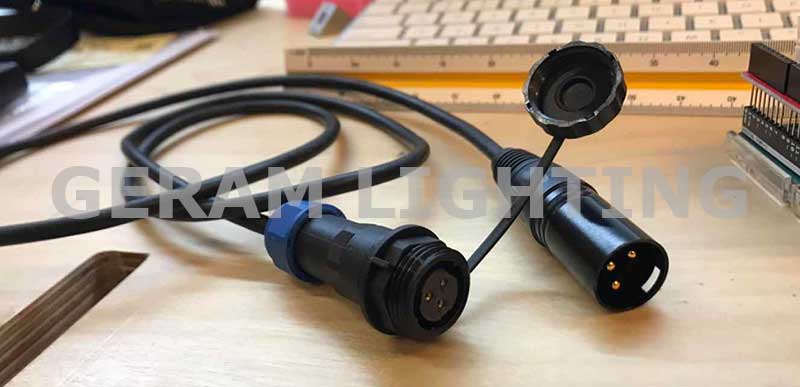

dmx cable ip65 waterproof

The advantages of our RGB LED flood light

1. High quality LED chip & LED driver

We use the best RGB / RGBW LED chips from CREE brand, these chips are with high brightness, low heat and good color. The LED driver is from Mean Well brand, which is super strong, with long lifespan and at least 5 years warranty.

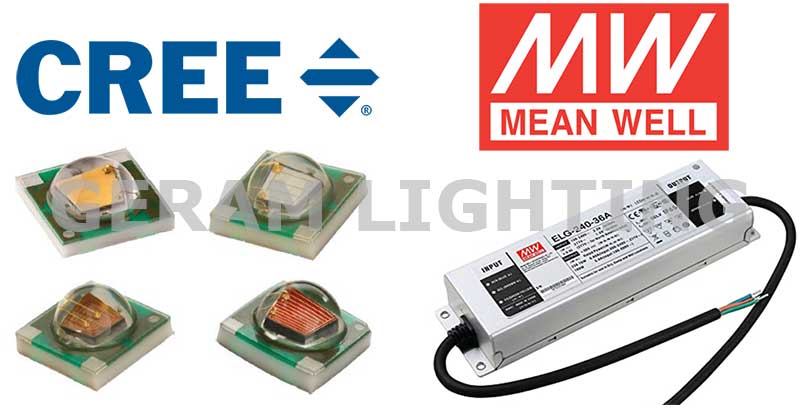

cree rgb led chips and mean well driver

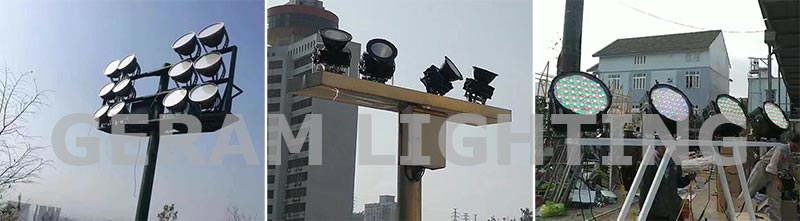

2. High Power

Our RGB / RGBW DMX LED flood lights can be made from 10W to 700W, especially 100W, 200W, 300W, 500W, 700W. High Power is our advantage, it needs special technology.

high power dmx rgb rgbw led flood light

3. Excellent colors

Our lights can generate better colors and beam angles, this is because we use our self-developed and self-designed solution, we improve the shortages for traditional RGB flood lights.

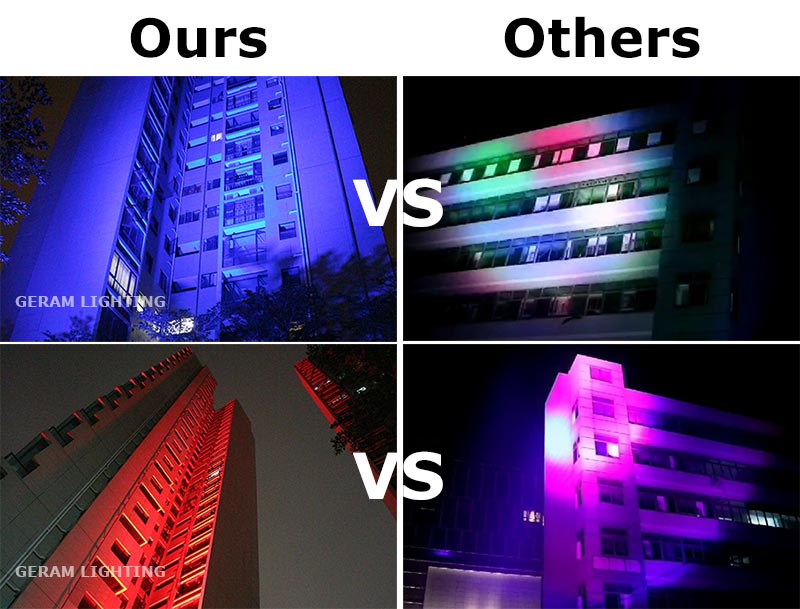

outdoor rgb rgbw dmx led flood light comparision

4. Narrow beam angle

The narrowest beam angle of our DMX LED flood lights is 5 degree, the widest beam angle is 120 degree. By using narrow beam angle, our lights can illuminate over 150 meters long distance.

narrow beam angle rgb led flood light

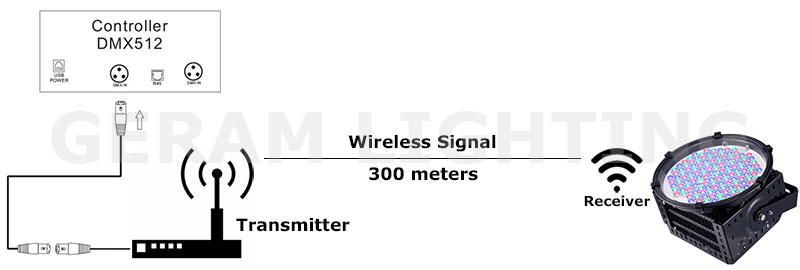

5. Customizable wireless solution

If it is difficult to lay the DMX cables in your application, we can customize the wireless solution for you. By using this wireless solution, you only need to use one DMX controller and one DMX wireless transmitter, don’t need the extra layout for DMX cables.

wireless solution rgb led flood light

6. Customizable mobile phone App controlled solution

If you are not familiar with DMX controller, but you want to customize the colors and changing effects by yourself, you can use our mobile phone App control solution. You can just use an App on the phone to customize multiple kinds of colors and changing effects.

mobile phone app controlled rgb rgb dmx flood light

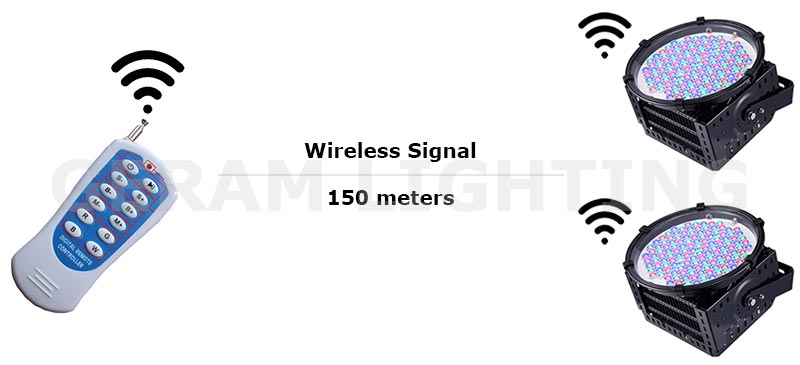

7. Customizable RF remote control solution

If you only want some fixed colors (such as red, green, bule & white) and changing effects (such as jumping, fading, flashing, strobing, smoothing), you can use our RF remote control solution. This solution is the most simple to use.

rgb led flood light with rf remote control

Installation Scheme

Our DMX flood lights has 3 kinds of installation types, one is wired installation, one is wireless installation, one is compatible installation(the combination of wired & wireless solutions).

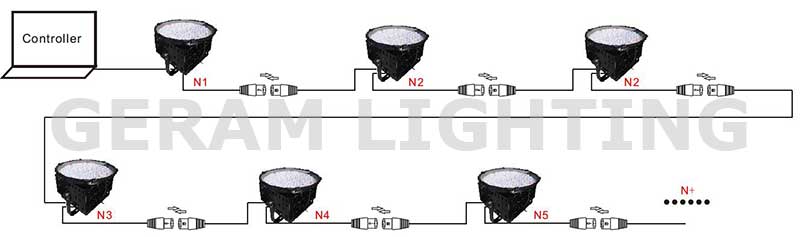

1. Wired Installation

wired installation of dmx rgb led flood light

2. Wireless Installation

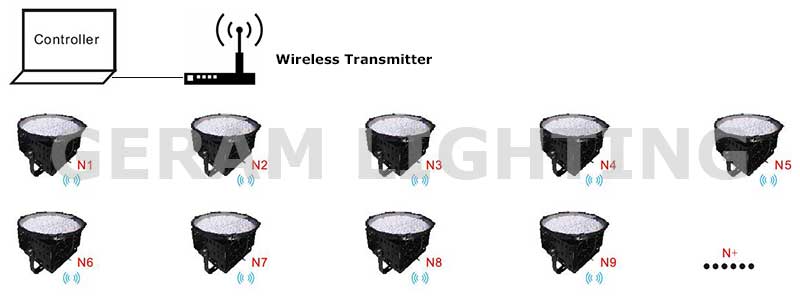

wireless installation of dmx rgb led flood light

3. Compatible Installation

compatible installation of dmx rgb led flood light

Certificates

Our RGB / RGBW DMX LED flood light has obtained a series of certificates such as CE, EMC, LVD, RoHS and FCC, etc. If you has special requirement, you can also tell us directly.

rgb led flood light ce rohs

More videos of our DMX RGB LED flood lights on Youtube.

Youtube: https://www.youtube.com/channel/UCYCYojuG_s19i5MDVysy2Dg
