LED Tube Light Manufacturer, Supplier & Factory in China

Brief Description

✪ Power: 9W/15W/18W/24W/28W/36W.
✪ Length: 0.6m/0.9m/1.2m/1.5m/2.4m.
✪ Multiple categories: T5/T8/Glass/Plastic/Motion Sensor/Waterproof/Grow/Batten/Tri-proof, etc.
✪ Use high brightness and high CRI 2835 LED chips from famous brand.
✪ Use isolated constant current IC driver with long lifespan.
✪ The cover can be made transparent or foggy.
✪ 2 Years warranty.

SKU: ZL-DG

We are a professional LED tube light manufacturer, supplier and factory located in China. We produce various kinds of LED tube lights, including T8 LED tube, T5 LED tube, T6 LED tube, T5/T8 integrate LED tube, Glass/Plastic LED tube, PIR/Radar Motion Sensor LED tube, waterproof LED tube, grow LED tube, batten LED tube, anti-ultraviolet LED tube, tri-proof LED tube, RGB LED tube, etc. Let’s get through them.

T8 LED Tube

> Power: 9W/15W/18W/24W/28W/36W.
> With aluminum heat sink.
> G13 interface. Can be made two-end powered or one-end powered.
> The cover can be made transparent or foggy.

Item No.	Power	Voltage	LED Type	Lumen	CCT	Materials	Beam Angle	Length	Warranty
ZL-DG-A009	9W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	0.6m	2 Years
ZL-DG-A015	15W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	0.9m	2 Years
ZL-DG-A018	18W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	1.2m	2 Years
ZL-DG-A024	24W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	1.2m/1.5m	2 Years
ZL-DG-A028	28W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	1.2m/1.5m	2 Years
ZL-DG-A036	36W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	2.4m	2 Years

T8 Integrate LED Tube

> Power: 9W/15W/18W/24W/28W/36W.
> With aluminum heat sink.
> Integrate designed & surface mounted. Easy to install.
> The cover can be made transparent or foggy.

Item No.	Power	Voltage	LED Type	Lumen	CCT	Materials	Beam Angle	Length	Warranty
ZL-DG-B009	9W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	0.6m	2 Years
ZL-DG-B015	15W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	0.9m	2 Years
ZL-DG-B018	18W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	1.2m	2 Years
ZL-DG-B024	24W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	1.2m/1.5m	2 Years
ZL-DG-B028	28W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	1.2m/1.5m	2 Years
ZL-DG-B036	36W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	2.4m	2 Years

T5 Integrate LED Tube

> Power: 9W/15W/18W.
> With aluminum heat sink.
> Integrate designed & surface mounted. Easy to install.
> The cover can be made transparent or foggy.

Item No.	Power	Voltage	LED Type	Lumen	CCT	Materials	Beam Angle	Length	Warranty
ZL-DG-C009	9W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	0.6m	2 Years
ZL-DG-C015	15W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	0.9m	2 Years
ZL-DG-C018	18W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	1.2m	2 Years

T6 LED Tube

> Power: 9W/15W/18W.
> Be used for replacing old style T5 tube light. With G5 interface which is the same as T5 tube light.
> Two-end or one-end powered.

Item No.	Power	Voltage	LED Type	Lumen	CCT	Materials	Beam Angle	Length	Warranty
ZL-DG-D009	9W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	0.6m	2 Years
ZL-DG-D015	15W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	0.9m	2 Years
ZL-DG-D018	18W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	1.2m	2 Years

Glass LED Tube

> Power: 9W/14W/18W.
> The whole body is glass material.
> Economic cost.
> 360 degree beam angle.

Item No.	Power	Voltage	LED Type	Lumen	CCT	Materials	Beam Angle	Length	Warranty
ZL-DG-AG009	9W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	Glass	360°	0.6m	2 Years
ZL-DG-AG014	14W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	Glass	360°	0.9m	2 Years
ZL-DG-AG018	18W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	Glass	360°	1.2m	2 Years

Plastic LED Tube

> Power: 9W/14W/18W.
> The whole body is plastic material.
> Cheap price.
> 360 degree beam angle.

Item No.	Power	Voltage	LED Type	Lumen	CCT	Materials	Beam Angle	Length	Warranty
ZL-DG-AP009	9W	AC85-265V	SMD2835	100lm/W	2700K-6500K	Plastic	360°	0.6m	2 Years
ZL-DG-AP014	14W	AC85-265V	SMD2835	100lm/W	2700K-6500K	Plastic	360°	0.9m	2 Years
ZL-DG-AP018	18W	AC85-265V	SMD2835	100lm/W	2700K-6500K	Plastic	360°	1.2m	2 Years

Waterproof LED Tube

> Power: 9W/14W/18W.
> Plastic light body. Very light weight.
> IP65 waterproof.
> One end is with cable for power.

Item No.	Power	Voltage	LED Type	Lumen	CCT	Materials	IP Rating	Length	Warranty
ZL-DG-AW009	9W	AC85-265V	SMD2835	100lm/W	2700K-6500K	Plastic	IP65	0.6m	2 Years
ZL-DG-AW014	14W	AC85-265V	SMD2835	100lm/W	2700K-6500K	Plastic	IP65	0.9m	2 Years
ZL-DG-AW018	18W	AC85-265V	SMD2835	100lm/W	2700K-6500K	Plastic	IP65	1.2m	2 Years

IR Motion Sensor LED Tube

> Power: 9W/14W/18W.
> Motion Detector Type: Infrared Radiation(IR).
> Detecting distance: 5-8 meters.
> While detecting people, the light will be off or keep low brightness.
> Suitable to use in warehouse, parking lot, passage, etc.

Item No.	Power	Voltage	LED Type	Lumen	CCT	Materials	Beam Angle	Length	Warranty
ZL-DG-E009	9W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	0.6m	2 Years
ZL-DG-E014	14W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	0.9m	2 Years
ZL-DG-E018	18W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	1.2m	2 Years

Radar Motion Sensor LED Tube

> Power: 9W/14W/18W.
> Motion Detector Type: Radar.
> Detecting distance: 6-10 meters.
> While detecting people, the light will be off or keep low brightness.
> Suitable to use in warehouse, parking lot, passage, etc.
> The detecting distance is a little longer than IR type.

Item No.	Power	Voltage	LED Type	Lumen	CCT	Materials	Beam Angle	Length	Warranty
ZL-DG-ER009	9W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	0.6m	2 Years
ZL-DG-ER014	14W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	0.9m	2 Years
ZL-DG-ER018	18W	AC85-265V	SMD2835	100-140lm/W	2700K-6500K	AL.+PC	180°	1.2m	2 Years

Grow LED Tube

> Power: 9W/15W/18W/24W.
> Length: 0.6m/0.9m/1.2m/1.5m.
> Transparent cover.
> Multiple colors for plants: Warm white/White/Red/Blue/Yellow/IR/UV, etc.

Item No.	Power	Voltage	LED Type	Lumen	CCT	Materials	Beam Angle	Length	Warranty
ZL-DG-F009	9W	AC85-265V	SMD2835	80lm/W	WW/W/R/B Y/IR/UV	AL.+PC	180°	0.6m	2 Years
ZL-DG-F015	15W	AC85-265V	SMD2835	80lm/W	WW/W/R/B Y/IR/UV	AL.+PC	180°	0.9m	2 Years
ZL-DG-F018	18W	AC85-265V	SMD2835	80lm/W	WW/W/R/B Y/IR/UV	AL.+PC	180°	1.2m	2 Years
ZL-DG-F024	24W	AC85-265V	SMD2835	80lm/W	WW/W/R/B Y/IR/UV	AL.+PC	180°	1.2m/1.5m	2 Years

Tri-proof LED Tube Light Fixture

> Power: 9W/18W/30W/36W.
> Length: 0.6m/0.9m/1.2m.
> Single tube and double tubes are optional.
> Surface mounted.

Item No.	Power	Voltage	LED Type	Lumen	CCT	Materials	Beam Angle	Length	Warranty
ZL-DG-G009	9W	AC85-265V	SMD2835	100-120lm/W	2700K-6500K	AL.+PC	180°	0.6m	2 Years
ZL-DG-G015	15W	AC85-265V	SMD2835	100-120lm/W	2700K-6500K	AL.+PC	180°	0.9m	2 Years
ZL-DG-G018	18W	AC85-265V	SMD2835	100-120lm/W	2700K-6500K	AL.+PC	180°	1.2m	2 Years
ZL-DG-G030	30W	AC85-265V	SMD2835	100-120lm/W	2700K-6500K	AL.+PC	180°	0.9m	2 Years
ZL-DG-G036	36W	AC85-265V	SMD2835	100-120lm/W	2700K-6500K	AL.+PC	180°	1.2m	2 Years

Our advantages

1. High Brightness: We use the LED chips with very high brightness and high CRI from famous brand.

2. Long lifespan: The drivers of our LED tubes are isolated constant IC type. It has a very long lifespan and can work many hours per day.

3. Strong Factory Capacity: We are an experienced manufacturer with powerful production lines. Our factory is well equipped and our workers are well trained. We offer excellent quality and service, and fast delivery time.

4. Low Price: We provide direct factory price which will lower your budget and keep you competitive in your market.

Installation Tips

Certificates

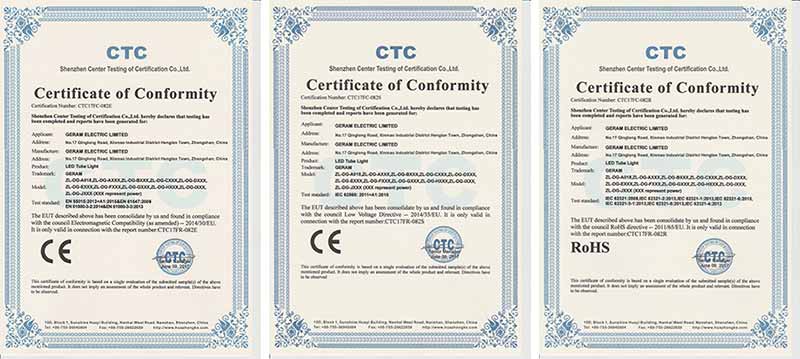

Our LED tube light has obtained a series of certificates such as CE, EMC, LVD, RoHS and FCC, etc. If you has special requirement, you can let us know directly.

Applications

Our led tube lights are widely used in office, warehouse, parking lot, school, supermarket, stores, restaurant, hotel, etc.

Frequently Asked Question

1. Where are you located and how to buy your LED lights?

We are a leading LED light manufacturer located in Guangdong. China, You can easily buy our LED lights no matter where you are. Firstly, please send us an inquiry to tell us your requirement on our website or through email, whatsapp or skype, etc. Then we will send you feedback with our proposal, products and quotation. You will be requested to send us the payment after our deal. And when the payment comes we will arrange the production and send you the goods by air or by sea.

2. What's your payment term and how can I make the payment?

Normally our payment term is T/T 30% deposit and balance before shipment. For small amount (such as less than 500 USD) you can pay via Paypal, Western Union or MoneyGram. But for large amount, we will accept bank transfer. We accept different kinds of currency including USD, Euro, GBP, RMB, HKD, YEN, etc.

3. What's your delivery time and the way of shipment?

Normally the delivery time of our sample is 1-3 days and normal order is 5-15 days depending on the actual quantity of your order. We will arrange the shipment by air express(door to door), normal air freight(to your local airport), sea freight(to your local seaport) or some special shipping ways with duties according to the actual situation.

4. What's the lifespan of your products?

The lifespan of our LED lights can reach 50,000 hours in theory. But the actual lifespan will be a little shorter due to the influences caused by the actual environment temperature, humidity and the using habit of the end user. According to our experience, our LED lights can be used from 6 to 10 years or more.

5. How many years of warranty you provide and what are your terms of warranty policy?

Normally we provide 3 or 5 yrs warranty. During the warranty period, we will send you new products or new parts for replacement if there are any failures. You can come to us whenever you meet any problems.

6. I still have other questions ...

If you still have other questions about our company or LED light products, please contact us, you will get our response in a short time.
