LED Panel Light Manufacturer, Supplier & Factory in China
Brief Description
✪ Power: 18W/24W/36W/40W/48W/72W(For big LED panel). 3W/6W/9W/12W/15W/18W/24W(For small ultra thin LED panel).
✪ Multiple dimensions are available for your choice.
✪ Multiple Installation Types: Recessed, surface mounted or suspended.
✪ Use high brightness and high CRI 2835/4014 LED chips from famous brand.
✪ Use isolated constant current IC driver with long lifespan.
✪ Optional round or square shape.
✪ 2-3 Years warranty.
SKU: ZL-MB
We are a leading LED panel light manufacturer, supplier and factory located in China. We specialize in a variety of LED panel lights including big LED panel light with typical dimension 600x600mm, small ultra thin LED panel light, round/square shape LED panel light, recessed/surface mounted LED panel light, Grille/classroom LED panel light, waterproof LED panel light, cleaning LED panel light and RGB LED panel light, etc. We are also a professional exporter and trader, so no matter where you are from, you can purchase our LED panel lights easily. Please check our main models below.
Recessed LED Panel Light
> Power: 18W/24W/36W/40W/48W/60W/72W.
> Thin type. Thickness 9mm/14mm.
> The LED chips are assembled along four sides of the frame. The light is soft and comfortable.
> Rectangular design.
> Installation type: Recessed.
| Item No. | Power | Voltage | LED Type |
Lumen | CCT | Materials | Dimension | Installation Type |
|---|---|---|---|---|---|---|---|---|
| ZL-MB-E3030-18W | 18W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
300x300mm/ 295x295mm |
Recessed |
| ZL-MB-E3030-24W | 24W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
300x300mm/ 295x295mm |
Recessed |
| ZL-MB-E6060-36W | 36W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x600mm/ 595x595mm |
Recessed |
| ZL-MB-E6060-40W | 40W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x600mm/ 595x595mm |
Recessed |
| ZL-MB-E6060-48W | 48W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x600mm/ 595x595mm |
Recessed |
| ZL-MB-E30120-36W | 36W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
300x1200mm/ 295x1295mm |
Recessed |
| ZL-MB-E30120-40W | 40W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
300x1200mm/ 295x1295mm |
Recessed |
| ZL-MB-E30120-48W | 48W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
300x1200mm/ 295x1295mm |
Recessed |
| ZL-MB-E60120-60W | 60W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x1200mm/ 595x1295mm |
Recessed |
| ZL-MB-E30120-72W | 72W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x1200mm/ 595x1295mm |
Recessed |
Note: For the dimensions, there are slight differences in different countries. For instance, for 600x600mm, many countries will adopt this dimension. But in many European countries, 595x595mm will be used. And in some American countries, 603x603mm will be used. So please find out which dimension is suitable for you before you send us inquiry.
Recessed LED Panel Light - Thick Type
> Power: 20W/24W/36W/40W/45W/48W/60W/85W.
> This model is thicker than ZL-MB-E model. The LED chips are assembled on the surface of the back plate. Thickness 30mm.
> High lumen.
> Light weight and economic price.
| Item No. | Power | Voltage | LED Type |
Lumen | CCT | Materials | Dimension | Installation Type |
|---|---|---|---|---|---|---|---|---|
| ZL-MB-F3030-20W | 20W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
300x300mm/ 295x295mm |
Recessed |
| ZL-MB-F3060-24W | 24W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
300x600mm/ 295x595mm |
Recessed |
| ZL-MB-F6060-36W | 36W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x600mm/ 595x595mm |
Recessed |
| ZL-MB-F6060-40W | 40W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x600mm/ 595x595mm |
Recessed |
| ZL-MB-F6060-48W | 48W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x600mm/ 595x595mm |
Recessed |
| ZL-MB-F6060-60W | 60W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x600mm/ 595x595mm |
Recessed |
| ZL-MB-F30120-45W | 45W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
300x1200mm/ 295x1195mm |
Recessed |
| ZL-MB-F60120-85W | 85W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x1200mm/ 595x1195mm |
Recessed |
Surface Mounted LED Panel Light - Big Type
> Power: 24W/32W/36W/40W/48W/72W.
> Round / rectangular shape.
> Installation type: Surface mounted.
> Thickness: 39mm.
| Item No. | Power | Voltage | LED Type |
Lumen | CCT | Materials | Dimension | Shape |
|---|---|---|---|---|---|---|---|---|
| ZL-MB-G300-24W | 24W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
Φ300mm | Round |
| ZL-MB-G400-32W | 32W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
Φ400mm | Round |
| ZL-MB-G500-36W | 36W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
Φ500mm | Round |
| ZL-MB-G600-48W | 48W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
Φ600mm | Round |
| ZL-MB-H3030-24W | 24W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
300x300mm | Rectangular |
| ZL-MB-H3060-24W | 24W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
300x600mm | Rectangular |
| ZL-MB-H4040-32W | 32W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
400x400mm | Rectangular |
| ZL-MB-H5050-36W | 36W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
500x500mm | Rectangular |
| ZL-MB-H6060-36W | 36W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x600mm | Rectangular |
| ZL-MB-H6060-40W | 40W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x600mm | Rectangular |
| ZL-MB-H6060-48W | 48W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x600mm | Rectangular |
| ZL-MB-H3090-40W | 40W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
300x900mm | Rectangular |
| ZL-MB-H30120-40W | 40W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
300x1200mm | Rectangular |
| ZL-MB-H30120-48W | 48W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
300x1200mm | Rectangular |
| ZL-MB-H60120-72W | 72W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS/ PMMA |
600x1200mm | Rectangular |
Ultra Thin Small LED Panel Light
> Power: 3W/6W/9W/12W/15W/18W/24W.
> Round / square shape.
> Ultra thin design. Economic price.
> Installation type: Recessed.
> Can be used as downlight.
| Item No. | Power | Voltage | LED Type |
Lumen | CCT | Materials | Dimension | Shape |
|---|---|---|---|---|---|---|---|---|
| ZL-MB-A003 | 3W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | Φ90mm Cut:Φ75mm |
Round |
| ZL-MB-A006 | 6W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | Φ120mm Cut:Φ105mm |
Round |
| ZL-MB-A009 | 9W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | Φ148mm Cut:Φ135mm |
Round |
| ZL-MB-A012 | 12W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | Φ170mm Cut:Φ155mm |
Round |
| ZL-MB-A018 | 18W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | Φ220mm Cut:Φ205mm |
Round |
| ZL-MB-A024 | 24W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | Φ300mm Cut:Φ285mm |
Round |
| ZL-MB-B003 | 3W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | 90x90mm Cut:75x75mm |
Square |
| ZL-MB-B006 | 6W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | 120x120mm Cut:105x105mm |
Square |
| ZL-MB-B009 | 9W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | 148x148mm Cut:135x135mm |
Square |
| ZL-MB-B012 | 12W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | 170x170mm Cut:155x155mm |
Square |
| ZL-MB-B018 | 18W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | 220x220mm Cut:205x205mm |
Square |
| ZL-MB-B024 | 24W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | 300x300mm Cut:285x285mm |
Square |
Small Surface Mounted LED Panel Light
> Power: 6W/12W/18W/24W.
> Round / square shape.
> Installation type: Surface mounted.
| Item No. | Power | Voltage | LED Type |
Lumen | CCT | Materials | Dimension | Shape |
|---|---|---|---|---|---|---|---|---|
| ZL-MB-C006 | 6W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | Φ120mm | Round |
| ZL-MB-C012 | 12W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | Φ170mm | Round |
| ZL-MB-C018 | 18W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | Φ220mm | Round |
| ZL-MB-C024 | 24W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | Φ300mm | Round |
| ZL-MB-D006 | 6W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | 120x120mm | Square |
| ZL-MB-D012 | 12W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | 170x170mm | Square |
| ZL-MB-D018 | 18W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | 220x220mm | Square |
| ZL-MB-D024 | 24W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS | 300x300mm | Square |
Anti-glare LED Panel Light
> Power: 36W/40W/48W/72W.
> The mask is grid designed and with lens and reflector.
> Anti-glare. The light is soft and comfortable.
> Can be customized with radar motion sensor.
| Item No. | Power | Voltage | LED Type |
Lumen | CCT | Materials | Dimension | Thickness |
|---|---|---|---|---|---|---|---|---|
| ZL-MB-E6060D-24W | 24W | AC85-265V | SMD2835 | >80lm/W | 2700K-6500K | AL.+Lens | 600x600mm/ 595x595mm |
20mm |
| ZL-MB-E6060D-36W | 36W | AC85-265V | SMD2835 | >80lm/W | 2700K-6500K | AL.+Lens | 600x600mm/ 595x595mm |
25mm |
| ZL-MB-E6060D-42W | 42W | AC85-265V | SMD2835 | >80lm/W | 2700K-6500K | AL.+Lens | 600x600mm/ 595x595mm |
25mm |
| ZL-MB-E30120D-36W | 36W | AC85-265V | SMD2835 | >80lm/W | 2700K-6500K | AL.+Lens | 300x1200mm/ 295x1195mm |
25mm |
Grille LED Panel Light Classroom Light
> Power: 36W/40W/48W.
> The panel is grid designed. Anti-glare.
> No flicking and no blue light. Good protection for eyes.
> Be specially used in classroom, office, meeting room, etc.
| Item No. | Power | Voltage | LED Type |
Lumen | CCT | Materials | Dimension | Accessory |
|---|---|---|---|---|---|---|---|---|
| ZL-MB-E30120E-36W | 36W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PL | 300x1165 *95mm |
Hanging Pole |
| ZL-MB-E30120E-40W | 40W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PL | 300x1165 *95mm |
Hanging Pole |
| ZL-MB-E30120E-48W | 48W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PL | 300x1165 *95mm |
Hanging Pole |
Cleaning LED Panel Light
> Power: 24W/36W/40W/48W.
> Good sealing of the housing. IP44 level.
> The installation is very easy only with several screws.
> Be specially used in operating room, dust-free workshop, bakery and confectionery, make-up room, precision instrument workshop, pharmaceutical workshop, electronic workshop and laboratory, etc.
| Item No. | Power | Voltage | LED Type |
Lumen | CCT | Materials | Dimension | IP Rating |
|---|---|---|---|---|---|---|---|---|
| ZL-MB-E3060C-24W | 24W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS PMMA |
300x608mm | IP44 |
| ZL-MB-E6060C-36W | 36W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS PMMA |
608x608mm | IP44 |
| ZL-MB-E6060C-40W | 40W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS PMMA |
608x608mm | IP44 |
| ZL-MB-E6060C-48W | 48W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS PMMA |
608x608mm | IP44 |
| ZL-MB-E30120C-36W | 36W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS PMMA |
300x1208mm | IP44 |
| ZL-MB-E30120C-40W | 40W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS PMMA |
300x1208mm | IP44 |
| ZL-MB-E30120C-48W | 48W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS PMMA |
300x1208mm | IP44 |
Waterproof LED Panel Light
> Power: 24W/36W/40W/48W/72W.
> IP65 waterproof.
> Can be used outdoor or in humid places.
| Item No. | Power | Voltage | LED Type |
Lumen | CCT | Materials | Dimension | IP Rating |
|---|---|---|---|---|---|---|---|---|
| ZL-MB-E3060W-24W | 24W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS PMMA |
300x600mm/ 295x595mm |
IP65 |
| ZL-MB-E6060W-36W | 36W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS PMMA |
600x600mm/ 595x595mm |
IP65 |
| ZL-MB-E6060W-40W | 40W | AC85-265V | SMD2835 | >100lm/W | 2700K-6500K | AL.+PS PMMA |
600x600mm/ 595x595mm |
IP65 |
| ZL-MB-E6060W-48W | 48W | AC85-265V | SMD2835 | >80lm/W | 2700K-6500K | AL.+PS PMMA |
600x600mm/ 595x595mm |
IP65 |
| ZL-MB-E30120W-36W | 36W | AC85-265V | SMD2835 | >80lm/W | 2700K-6500K | AL.+PS PMMA |
300x1200mm/ 295x1195mm |
IP65 |
| ZL-MB-E30120W-40W | 40W | AC85-265V | SMD2835 | >80lm/W | 2700K-6500K | AL.+PS PMMA |
300x1200mm/ 295x1195mm |
IP65 |
| ZL-MB-E30120W-48W | 48W | AC85-265V | SMD2835 | >80lm/W | 2700K-6500K | AL.+PS PMMA |
300x1200mm/ 295x1195mm |
IP65 |
Our advantages
1. High Brightness: We use the LED chips with very high brightness and high CRI from famous brand.
2. Long lifespan: The drivers of our LED panel lights are isolated constant IC type. It has a very long lifespan and can work many hours per day.
3. Strong Factory Capacity: We are an experienced manufacturer with powerful production lines. Our factory is well equipped and our workers are well trained. We offer excellent quality and service, and fast delivery time.
4. Low Price: We provide direct factory price which will lower your budget and keep you competitive in your market.

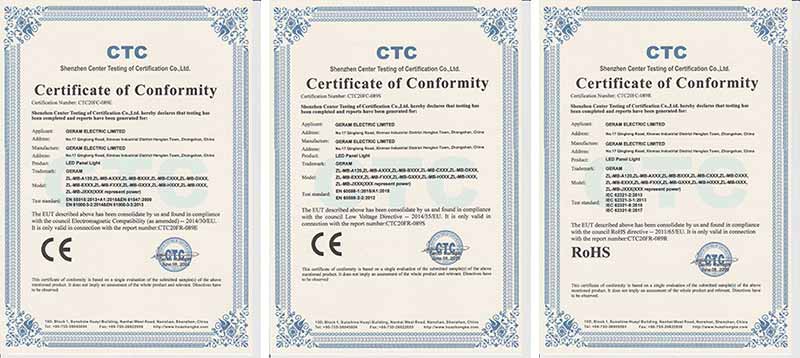

Certificates
Our LED panel light has obtained a series of certificates such as CE, EMC, LVD, RoHS and FCC, etc. If you has special requirement, you can let us know directly.
Applications
Our led panel lights are widely used in office, shop, school, supermarket, kitchen, meeting room, bedroom, hotel, etc.
Frequently Asked Question
We are a leading LED light manufacturer located in Guangdong. China, You can easily buy our LED lights no matter where you are. Firstly, please send us an inquiry to tell us your requirement on our website or through email, whatsapp or skype, etc. Then we will send you feedback with our proposal, products and quotation. You will be requested to send us the payment after our deal. And when the payment comes we will arrange the production and send you the goods by air or by sea.
Normally our payment term is T/T 30% deposit and balance before shipment. For small amount (such as less than 500 USD) you can pay via Paypal, Western Union or MoneyGram. But for large amount, we will accept bank transfer. We accept different kinds of currency including USD, Euro, GBP, RMB, HKD, YEN, etc.
Normally the delivery time of our sample is 1-3 days and normal order is 5-15 days depending on the actual quantity of your order. We will arrange the shipment by air express(door to door), normal air freight(to your local airport), sea freight(to your local seaport) or some special shipping ways with duties according to the actual situation.
The lifespan of our LED lights can reach 50,000 hours in theory. But the actual lifespan will be a little shorter due to the influences caused by the actual environment temperature, humidity and the using habit of the end user. According to our experience, our LED lights can be used from 6 to 10 years or more.
Normally we provide 3 or 5 yrs warranty. During the warranty period, we will send you new products or new parts for replacement if there are any failures. You can come to us whenever you meet any problems.
If you still have other questions about our company or LED light products, please contact us, you will get our response in a short time.
Email: [email protected]
WhatsApp/Wechat: +8618011802260
Skype: jerrygeram
Facebook: https://www.facebook.com/jerrygeram/
LinkedIn: https://www.linkedin.com/in/jerrymo/
Twitter: https://twitter.com/jerrygeram
Youtube: https://www.youtube.com/channel/UCYCYojuG_s19i5MDVysy2Dg
