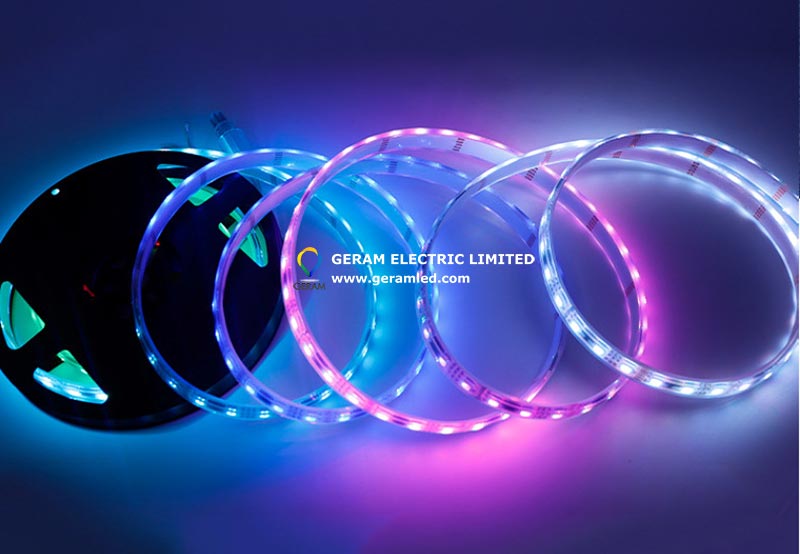

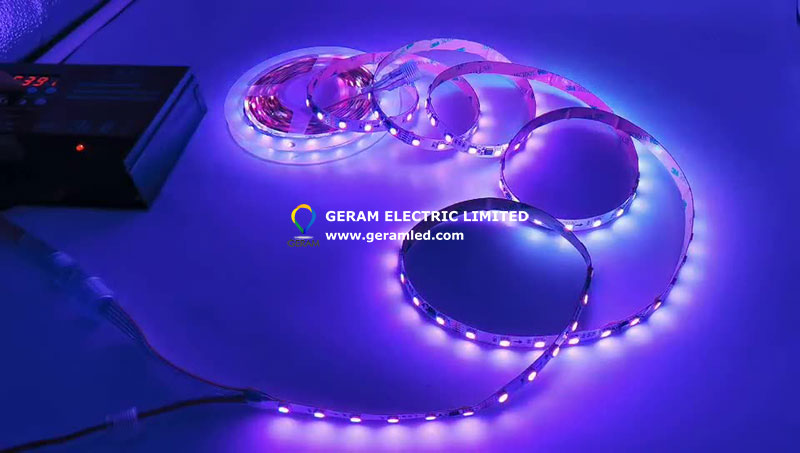

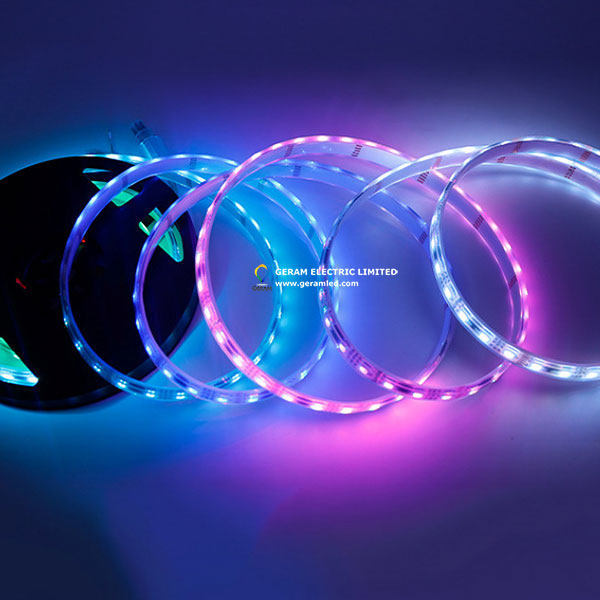

DMX LED Strip Light RGB RGBW DMX512 Addressable
Brief Description
✪ Power: 14.4W.
✪ LED model: SMD5050
✪ LED Qty / meter: 60 pieces.
✪ Voltage: DC 12V / 24V.
✪ CCT: RGB / RGBW.
✪ IP rating: IP20 / IP65.
✪ 3 Years warranty.
✪ DMX512 function: Support.
✪ Packing: 5m per roll.
SKU: ZL-ST-5050 (DMX)
LED strip lights are easy to use. They are widely used in indoor or outdoor applications and can bring gorgeous effects for scenes. If you want to create much better lighting effects, you can use DMX/DMX512 LED strip lights.
DMX LED strip lights are based on normal LED strip lights and added DMX function. Normally they can display red, green, blue, white colors and other mixed colors. They can be divided into sections which are addressable and can display different color and effect individually. So DMX LED strip lights can display more complicated and gorgeous effects.
Specifications
DMX LED Strip Light RGB RGBW DMX512 Addressable
| Model No. | ZL-ST-5050 (DMX) |
|---|---|
| Working voltage | DC24V / DC12V |
| LED Model | SMD5050 |
| LED qty/meter | 60 LEDs |
| Power/meter | 14.4W |
| Color temperature | RGB / RGBW |
| Materials | aluminum + silicon + copper |
| Board width | 10mm |
| Cutting size | 97.3mm |
| IP rating | IP20 / IP65 |
| DMX512 function | Support |
| Packing | 5 meters/roll |
| Warranty | 3 Years |
Features
5050 LED chips
Employ excellent LED chips and copper fixtures, high brightness, long lifespan, uniform color and high consistency.
Resistance
Employ precise resistances, guarantee correct input voltage and errors, extend the lifespan of the LED chips.
PCB board
Employ double-layer FPC PCB boards, flexible, super thin, with excellent performance for conducting electricity and heat to ensure the lifespan of the LED strips.
5-pin waterproof interface
waterproof, moistureproof, high temperature resistant, anti-aging and corrosion resistant.
Back adhesive
Employ double-sided adhesive with strong adhesion and is convenient to use.
Cuttable
Cut the length you want, avoid waste.
We have both IP20 and IP65 waterproof versions for DMX LED strip lights.
IP20 Version
IP65 Version
Why choose our product
High quality LED chips
High transparency and soft silicon
Energy saving
No flicking
Copper core wire
Outdoor waterproof
Installation instruction
Before you use the LED strips, measure the dimension of the place in which the DMX LED strip lights will be installed.
Before you use the LED strips, measure the dimension of the place in which the DMX LED strip lights will be installed.
Before you use the LED strips, measure the dimension of the place in which the DMX LED strip lights will be installed.
Tear off the adhesives of the strips and attach them to the place. We do not suggest to tear off all adhesives at one time to avoid that they will attached to each other.
