500 watt rgbw led flood light

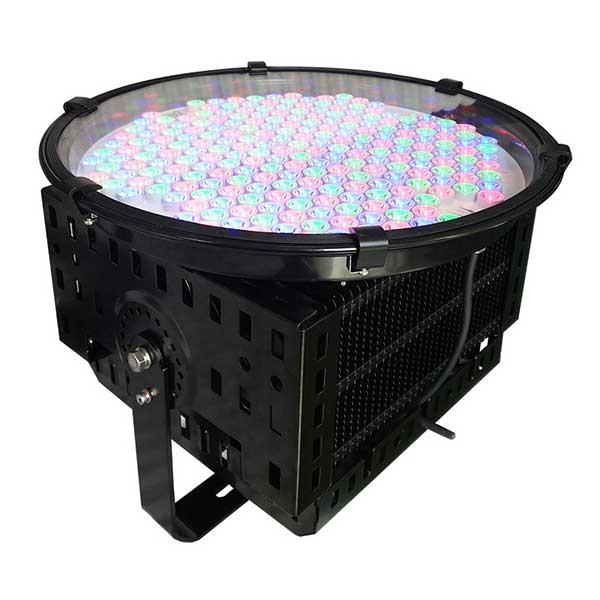

Best Quality DMX Controlled 500 Watt RGBW LED Flood Light

  • 500 watt rgbw led flood light
  • 500 watt rgbw led flood light
  • 500 watt rgbw led flood light

Brief Description

Power: 500 watt.
Using CREE brand RGB / RGBW LED chips with high brightness, good color effect, low heat and long lifespan.
Using Mean Well LED driver which is one of the best driver brand in the world.
Support multiple color changing effects: Flashing, Strobing, Jumping, Fading, Smoothing, etc.
The whole light is outdoor IP66 waterproof.
Support very narrow beam angles from 5 to 120 degree. The irradiation distance is from 30 meters to 150 meters.
Support DMX function and custom wireless solution.
5 Years warranty.


Specifications - 500 watt RGBW LED flood light

Best Quality DMX Controlled 500 Watt RGBW LED Flood Light

Model   No. Power Input Voltage DMX Function
ZL-FL-JD500 500 Watt AC100-277V Support
Materials Working Temp. Lifespan Warranty
Alu.+Tempered+Glass -40°C~60°C 50,000 Hours 5 Years
LED Brand LED Model Color Temp. CRI
CREE High Power RGB / RGBW > 80
Driver Brand PF IP Rating Beam Angle
Mean Well > 0.95 Outdoor IP66, IK08 5° - 120°
Dimension Weight Wireless Solution Certification
Φ480*H390.7mm 20KG Custom CE/EMC/LVD/RoHS

Product Show - 500 watt RGBW LED flood light

•  High brightness & comfortable color: Using the best RGB / RGBW LED chips from CREE brand which are with high brightness, low heat, no flicker and comfortable color.
•  Extremely long lifespan: Using famous Mean Well LED driver which is super strong, stable and long lifespan. 5 years guaranteed quality.
•  Optional RGB / RGBW solution: Can be made with 3 colors of LED chips (R/G/B) or 4 colors of LED chips (R/G/B/W).
•  Support DMX function: Built-in DMX512 decoder, it can work with DMX controller directly.
•  Support multiple color changing effects: The default program supports a lot of effects such as R/G/B color changing, Flashing, Strobing, Jumping, Fading, Smoothing, etc.
•  Custom wireless solution: Save your jobs and costs for the layout of DMX cables.
•  Super narrow beam angle: The narrowest beam angle is 5 degree, the widest beam angle is 120 degree.
•  Long illuminating distance: Up to 150 meters or longer with high wattages and narrow beam angles.
•  Die-casting aluminum body: Excellent cooling performance for heat dissipation.

dmx rgb led flood light
dmx 512 rgb led flood light
dmx512 rgb led flood light
dmx512 rgbw led flood light
500 watt rgb led flood light - 5
dmx rgb flood light for lighting up trees

Color changing effects - 500 watt RGBW LED flood light

Our 500 watt RGBW LED flood light supports many kinds of color changing effects, such as Flashing, Strobing, Jumping, Fading, Smoothing, etc. If working with DMX controller, it can generate more and complicated color changing effects.

Applications - 500 watt RGBW LED flood light

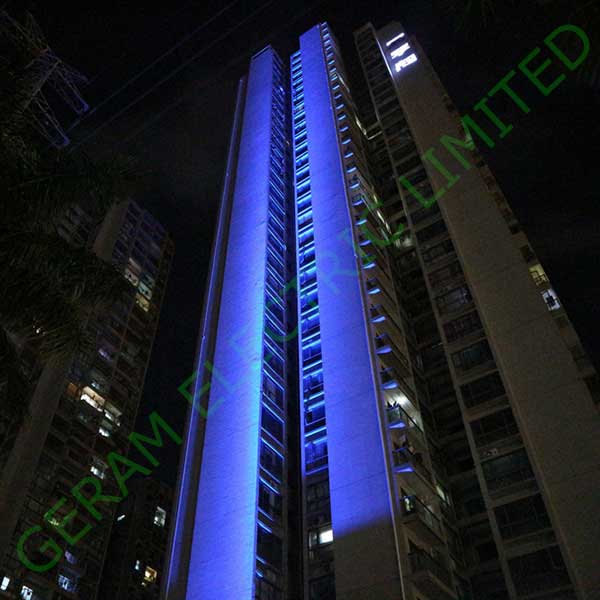

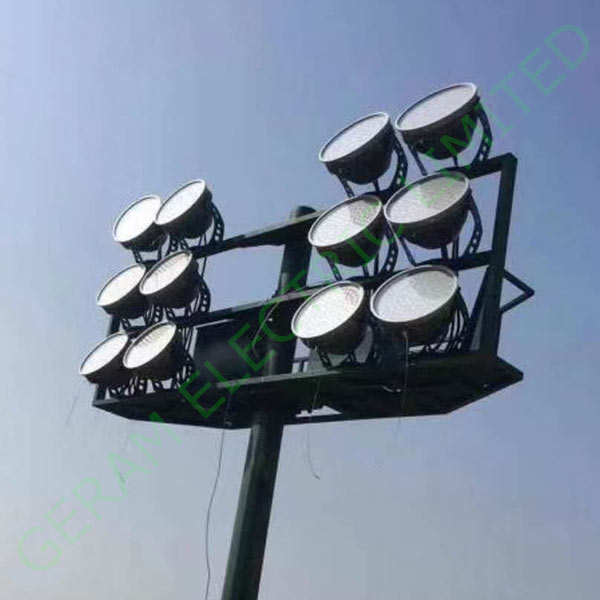

Our 500 watt RGBW LED flood light is widely used in commercial building, garden, square, bridge, housing estate, landmark building, amusement park, hotel, tower, church, dock, pitch, etc.

wireless dmx rgb led flood light

DMX512 function - 500 watt RGBW LED flood light

If you want our 500 watt RGBW LED flood light with DMX512 function, you can buy the DMX controller by yourself or from us. Our controller supports SD card programming or real time online programming by computer software.

dmx controller
dmx cables

Installation - 500 watt RGBW LED flood light

There are 3 parts of cables in our 500 watt RGBW LED flood light, one is for power supply, one is for DMX IN, and the last is for DMX OUT. If you use a DMX controller, you can chain all lights with the DMX cables first and connect the first light to the DMX controller as the following picture.

dmx rgb led flood light wired installation

For wireless version, we will add a wireless transmitter to work with the controller to broadcast the signal. And each light will be added with a receiver to get the wireless signal.

dmx rgb led flood light wireless installation

Why choose our 500 watt RGBW LED flood light?

1 •  Our solution is based on Single Color RGB or RGBW led chips, not 3in1 or 4in1 led chips. 3in1 or 4in1 means the RGB/RGBW colors are integrated in only one led chip, normally the color of this kind of led chip is scattered and will not look very good. But our solution is by mixing multiple Single Color RGB/RGBW led chips, the color of single color led chips is more pure, the output light is more concentrated and the color effect will look better. Our solution is better than most solutions in this market.
2 •  Our 500 watt RGBW LED flood light can be made with narrowest 5° or 10° beam angles, these are the beam angles many companies can not make. Our light can illuminate up to 150 meters.
3 •  Our 500 watt RGBW LED flood light is self-designed and self-developed, including the DMX512 decoder. When our light has problem, we can position it and fix it quickly. We provide excellent maintenance service.
4 •  We are factory, we can customize the product as your requirement. We provide OEM service and competitive factory price.
5 •  We have been manufacturing LED lights for about 10 years, we can supply you more reliable lighting products.

Besides our 500 watt RGBW LED flood light, we still manufacture other models and wattages, you can go to our RGB LED Light category page or home page for more information.

led lighting manufacturer in china
Frequently Asked Question

1. Where are you located and how to buy your LED lights?

We are a leading LED light manufacturer located in Guangdong. China, You can easily buy our LED lights no matter where you are. Firstly, please send us an inquiry to tell us your requirement on our website or through email, whatsapp or skype, etc. Then we will send you feedback with our proposal, products and quotation. You will be requested to send us the payment after our deal. And when the payment comes we will arrange the production and send you the goods by air or by sea.

2. What's your payment term and how can I make the payment?

Normally our payment term is T/T 30% deposit and balance before shipment. For small amount (such as less than 500 USD) you can pay via Paypal, Western Union or MoneyGram. But for large  amount, we will accept bank transfer. We accept different kinds of currency including USD, Euro, GBP, RMB, HKD, YEN, etc.

3. What's your delivery time and the way of shipment?

Normally the delivery time of our sample is 1-3 days and normal order is 5-15 days depending on the actual quantity of your order. We will arrange the shipment by air express(door to door), normal air freight(to your local airport), sea freight(to your local seaport) or some special shipping ways with duties according to the actual situation.

4. What's the lifespan of your products?

The lifespan of our LED lights can reach 50,000 hours in theory. But the actual lifespan will be a little shorter due to the influences caused by the actual environment temperature, humidity and the using habit of the end user. According to our experience, our LED lights can be used from 6 to 10 years or more.

5. How many years of warranty you provide and what are your terms of warranty policy?

Normally we provide 3 or 5 yrs warranty. During the warranty period, we will send you new products or new parts for replacement if there are any failures. You can come to us whenever you meet any problems.

6. I still have other questions ...

If you still have other questions about our company or LED light products, please contact us, you will get our response in a short time.
